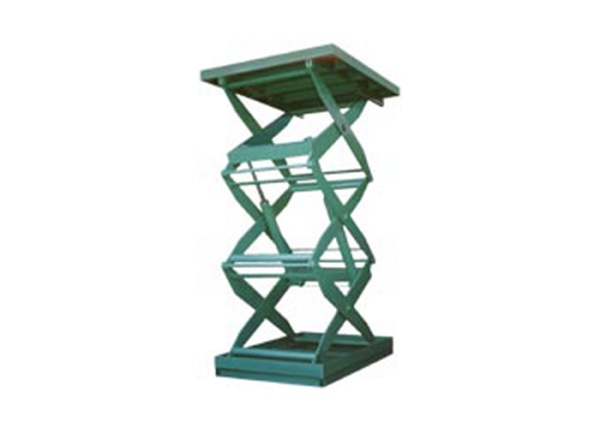

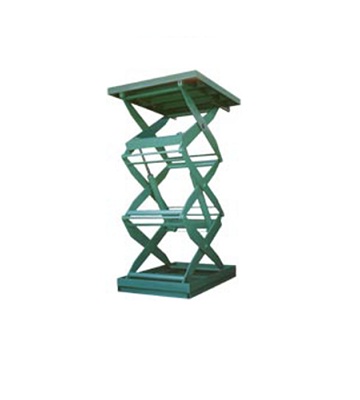

Name:SJG Multi Scissors Lift Elevator
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
 01 Hydraulic Motorcycle Lift
 02 Pneumatic Motorcycle Lift
 03 Electric Stationary Lift Table
 04 Circular Rotating Lift Table
 05 Electric Load and Unloading Lift Table
 06 Electric Scissors lift Elevator
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.The mechanistic form of optimized design effectively lowers the initial height of the lift table, and increases the lifting stroke to the maximum range.

2.The fairly strong rigidity of the lifting mechanism enables the lift table to have every high rise and fall steadiness.

3.The reliability of the lifting mechanism, and the stability of the hydraulic system make the lift table suitable for frequent operation.

4.The steel have undergone shot blast treatment, effectively improving the welding quality and paint adhesive force.

5.The precision ground hydraulic cylinder inner wall fitted with imported sealing elements ensure the hydraulic cylinder has very good sealing performance.

6.The compact type hydraulic station design can be integrated inside of most lift tables.

Specifications:

Model

Capacity (kg)

Lifting height H2(mm)

Rated height(mm)

Lift Height(mm)

Platform size(mm)

Elevating time(s)

Motor power(kw)

Self weight (kg)

Stationary Hydraulic Lift Table with Multi Scissors

SJG1-4

1000

4000

4680

740

2000x2000

40

2.2

1500

SJG2-4

2000

4000

4740

800

2000x2000

40

3.7

1800

SJG3-4

3000

4000

4800

800

2000x2000

40

5.5

2000

SJG1-5

1000

5000

5800

880

2000x2000

60

2.2

1700

SJG2-5

2000

5000

5880

960

2000x2000

60

3.7

2100

SJG3-5

3000

5000

5960

1020

2000x2000

70

5.5

2500

SJG1-6

1000

6000

7020

1120

2000x2000

70

3.7

2000

SJG2-6

2000

6000

7120

1280

2000x2000

70

5.5

2500

SJG3-6

3000

6000

7120

1520

2000x2000

100

5.5

3000

SJG1-9

1000

9000

10280

740

2500x2000

120

5.5

3500

SJG2-9

2000

9000

10520

800

2500x2000

50

7.5

4800
