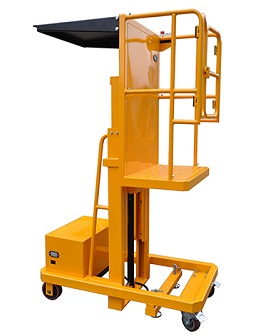

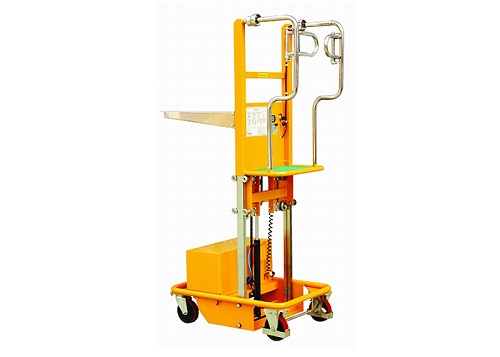

Name:WF Electric Aerial order picker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Dramatically reduces strain, increases safety and productivity in those repeat picking applications.
2.Hand pushed unit which is easy to maneuver.
3.Quick battery operated lift to desired height.
4.Two parking brakes ensure safety rest.
5.Supplied with battery and automatic charger.
6.With added safety features: mandatory two handed controls safety bar, etc.
7.Conforms to EN280.
Specifications:

Model


WF200

Rated Capacity

kg

200

Min. Height of Platform

mm

670

Max. Height of Platform

mm

1500

Platform Size

mm

600*550

Pump Station Power

W

DC 700

Battery

V-Ah

12-60

Net Weight

kg

123

Outline Size

mm

1040*630*1650
