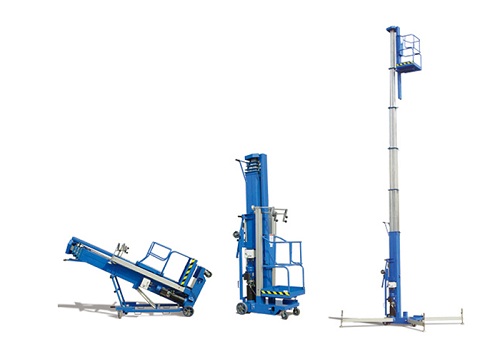

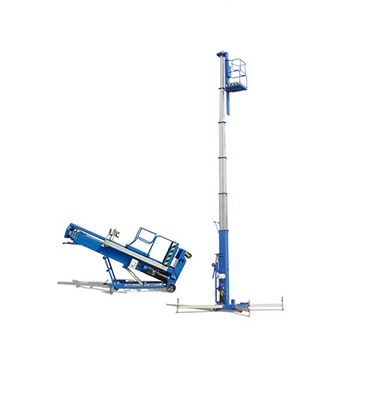

Name：GTC-H Aluminum Vertical Aerial Work Platform
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
The whole machine made of high strength material of aluminum alloy, elegant and delicate in the structure. The weight of complete machine is extremely light. Quite easy to push it on and go upstairs and downstairs, capable to pass through common entrance halls and pass in/out elevators. Less power consumption, free of noise and pollution, and no damage to the floor in the case of work. Can be used for operation with the wall and out operation.



Specifications：

Model

Platform Capacity

Max. Height of Platform

Max. Work Height

Store Dimension

Power Voltage

Motor Power

Total weight

kg

m

m

m

v

kw

kg

GTC6B

100

6.4

8.2

1.30×0.76×2.00

220

1.5

310

GTC7B

100

7.2

9

1.38×0.76×2.00

220

1.5

330

GTC9B

100

9.2

11

1.38×0.76×2.00

220

1.5

350

GTC12H

100

12.15

14

1.25×0.74×2.85

220

1.5

450

GTC14H

100

14.5

16.3

1.25×0.74×3.31

220

1.5

550
