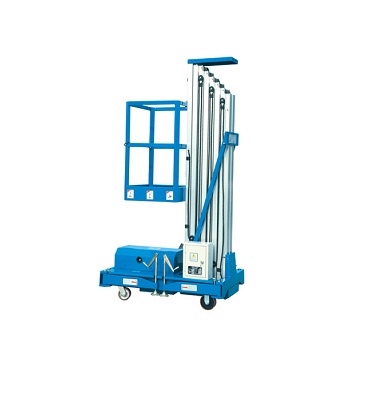

Name:GTWY-1000 Single Mast Aluminum Aerial Work Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
The product has passed the CE certification. It adopts aluminum mast design which is light, flexible and reliable. It is only for one person’s working in exhibition hall, warehouse, supermarket, airport, port, etc.

1.The product can be powered by DC or AC according to the order.

2.The external size is small after folded. It can be moved into elevator and pass ordinary door or narrow passage.

3.There are two controllers for ascending and descending.

4.It has unique upper platform and lower platform design.

Specifications:

Model No.



GTWY6-1000

GTWY8-1000

GTWY10-1000

Max. Platform Height

Mm

6000

8000

10000

Max. Machine Height

7350

9460

11300

Min. Platform Height

580

580

580

Ground Clearance

60

60

60

Lift Rated Capacity

Kg

150

125

125

Platform Size

Mm

630×650

630×651

630×652

Outspread Size

2030×1840

2030×1841

2030×1842

Electrical Source

AC

V

220-240

220-241

220-242

DC

12

12

12

Aneroid Battery

V/Ah

2×12/75

2×12/76

2×12/77

Charger

V/A

12/15

12/16

12/17

Lifting Motor

AC

V/kw

220/0.75-1.5

220/0.75-1.6

220/0.75-1.7

DC

12/1.5-1.6

12/1.5-1.7

12/1.5-1.8

Overall Length

Mm

1420

1420

1420

Overall Width

840

840

840

Overall Height

1920

2040

2040

Overall

AC

Kg

375

410

440

Net Weight

DC

415

450

490
