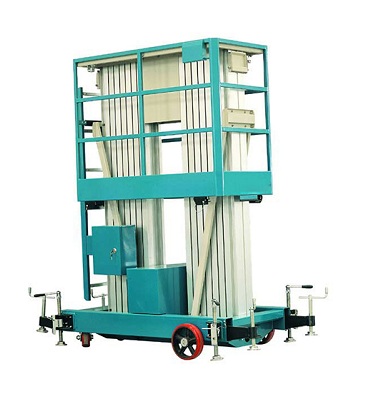

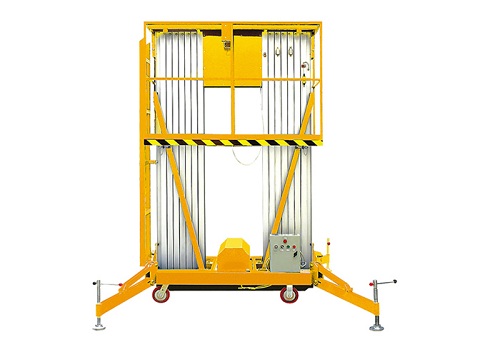

Name:GTWY-2000 Double Mast Aluminum Aerial Work Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Suitable for 1-2 person to work upraised with better loading capacity;
1.Two masts are descended or ascended synchronously;
2.Entire lifting unit with guardrail offers such high intensity and convenient installation and disassembling that it could complete assembling or disassembling through lifting only once;
3.Easy maneuvering and with straddle legs similar to that of single mast aerial work platform;
4.Conforms to CE;
5.Available accessories: mast stand, auxiliary for step use, side-sheer unit;
6.Power Supply: Single phase AC as standard;DC or both AC as option.
Specifications:

Model No.



GTWY6-2000

GTWY8-2000

GTWY10-2000

GTWY12-2000

Mast





Dual Mast

Max. Platform Height

mm

6000

8000

10000

12000

Max. Machine Height

mm

7050

9050

11050

13050

Min. Platform Height

mm

1800

1800

1800

2020

Ground Clearance

mm

80

80

80

80

Lift Rated Capacity

kg

300

300

250

200

Platform Size

mm

1210×600

1210×601

1450×600

1450×601

Outspread Size

mm

1880×1760

1880×1761

2220×1960

2250×2570

Electrical Source

AC

v

220-240

220-241

220-242

220-243

DC

v

12

12

12

12

Aneroid Battery

V/Ah

2×12/75

2×12/76

2×12/77

2×12/78

Charger

V/A

12/15

12/16

12/17

12/18

Lifting Motor

AC

V/kw

220/0.75-1.5

220/0.75-1.6

220/0.75-1.7

220/0.75-1.8

DC

V/kw

12/2.5

12/2.6

12/2.7

12/2.8

Overall Length

mm

1560

1560

1790

1790

Overall Width

mm

840

840

840

890

Overall Height

mm

1810

1810

1810

2030

Overall

AC

Kg

570

630

730

825

Net Weight

DC

kg

610

670

770

865
