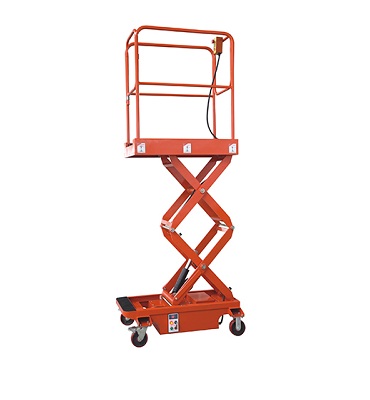

Name:SJY(mini) Mobile Scissors Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Free-standing operation, with rechargeable 12V battery power.
2.Minimum 200 operating cycles at rated loading.
3.Quick and smooth ascent or descent.
4.Ergonomic platform with non-slip floor and secure gating.
5.Dual control points including emergency stops. Audible descend and tilt alerts.
6.Spiral cable connection to the platform control unit. Emergency down valve
7.Non-marking wheels, all 4 with brakes including 2 for steering.
8.Prominent decals promoting responsible use. Forklift pockets and tool box.

Specifications:
Specifications   SJY0.3-1.7(mini)
Max.Platform Height mm 1700
Min.Platform Height mm 520
Platform Size (LxWxH) mm 1000x530
Platform Extend Length mm /
Lift Rated Capacity kg 300
Platform Extend Capacity kg
Support leg Spread Size mm //
Elevating Time s 10
Lowering Time s 7
Lift Motor V/kw 12/0.8
Charger V/A 12/15A
Votagle V //
Overall Length mm 1140
Overall Width mm 700
Overall Height mm 1620
Service Weight kg 230
