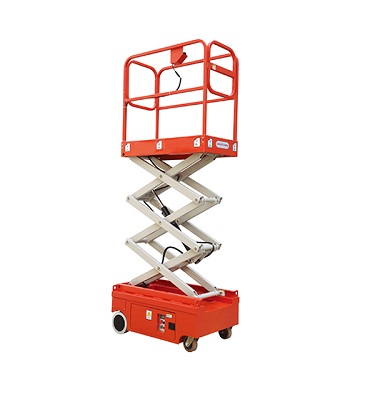

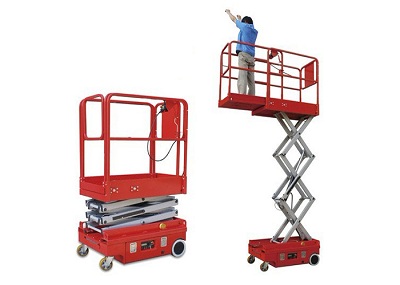

Name：FSJY(mini) Self-propelled Aerial Work Platform (FSJY3 FSJY3.9)
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place,

could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on.

Moreover, because of its big solid tire, it could work perfectly in rough ground.

1.   DC motor and driving systems.

2.    With safety-falling equipment.

Specifications：

Model Number

　

FSJY0.24-3 (mini)

Lift Rated Capacity

kg

240

Maximum working height

mm

5000

Maximum platform height

mm

3000

Overall Length

mm

1180

Overall Width

mm

760

Overall Height

mm

1830

Platform Size

mm

1170×600

Ground clearance

mm

60

Wheel base

mm

990

Minimum turn radius

mm

1200

Driver Motor

V/kw

2×24/0.4

Lifting Motor

V/kw

24/0.8

Running speed(platform Stowed)

km/h

4

Running speed(platform Elevated)

km/h

0.8

Rising/falling speed

sec

20/30

Battery

V/Ah

2×12/80

Charger

V/A

12/24

Maximum climbing ability

%

10-15

Maximum working allowable angle

/

2°

Driving Wheel

mm

Φ230×80

Front wheel

in

6

Lifting capacity

kg

490
