Products – Aerial Work Platform

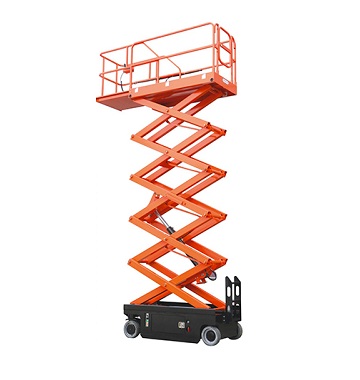

Name:FSJY Self-propelled Hydraulic Driven Aerial Work Platform (FSJY0608 FSJY0810 FSJ
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The lifting platform has the function of automatic stepping and turning, with non-manpower draught and non-external power source. It is flexible and convenient for moving for aloft work, which is the ideal aloft working facility for safety production in modern enterprise. All models of shears-fork type aloft working platform can be changed to the automatic hydraulic lifting platform.

·      1.High-quality construction steel

·      2.Braking/manual optional

·      3.The shears-fork mechanical structure provides higher stability when the platform elevating. On the other hand, the wide working platform and higher loading capacity are suitable for various aloft work requirement, and multi-persons operation at the same time

·      4.It is mainly applied for factory, warehouse, bus station, dock, airport, in aloft working, commodity convey, assembly line corollary equipment, and etc.

Specifications:

MODEL



FSJY6

FSJY7.4

Max. Platform Height  (H)

mm

6000

7400

Max. Machine Height    (H1)

mm

7100

8500

Min. Platform Height   (D)

mm

1010

1130

Ground Clearance

mm

90

Lift Rated Capacity

kg

300

250

Platform Extend Capacity

kg

100

80

Platform Size

mm

1870×730

Platform Extend Length (F)

mm

900

Max Drive Speed (platform Stowed)

km/h

34

Max.Drive Sp)eed (platform Elevated

km/h

0.61

Min. Turing Radius

mm

1900

Max. Gradbility

%

1015

Driving Wheel Size

mm

Ф250×80

Caster Size

in

8

Driving Motor

v/kw

2×24/0.5

Lifting Motor

v/kw

24/2.2

Aneroid Battery

v/Ah

2×12/150

Charger

v/A

24/15

Pothole Protection System



Automechanism

Overall Length

mm

2030

Overall Width

mm

900

Overall Height

mm

2120

2240

Net Weight

kg

1300

1400
