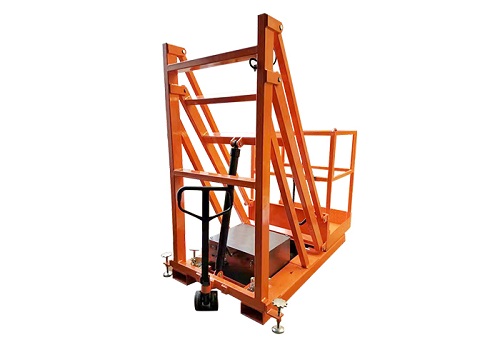

Name:QB Forklift Manned Platforms (QB20 QB28)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.The QB03 Forklift Access Platform has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of access and maintenance requirements within industry and commerce.  A sound long term investment!

2.The QB03 Forklift Access Platforms simply attach to the forks on a forklift truck enabling workers to stand on the platform and safely perform maintenance and inspections at height.

3.The QB03 Forklift Access Platform has rail sides with a fully pressed checker plate tub section, supported with a welded base structure to offer a robust design that will handle any task required for height safety.

4.This QB03 Forklift Access Platforms comply to Health and Safety guidance note PM28 and we can make a bespoke unit for your specific requirements.


Specifications:

Model

QB-3

Rated Capacity

kg

210

Max Platform Height

mm

3000

Platform Size

mm

600x1000

Power Supply

v

DC12

Battery

v/Ah

12/65

Integrated Charger

v/A

12/15

Overall Length

mm

1940

Overall Width

mm

1000

Overall Height

mm

2000
