Products – Mini Stacker

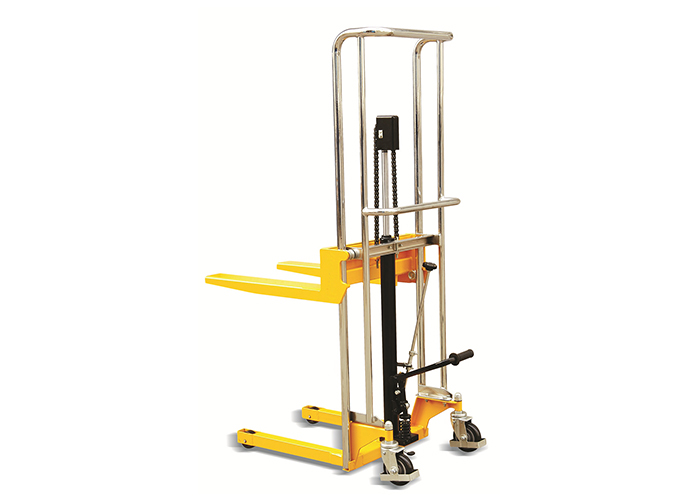

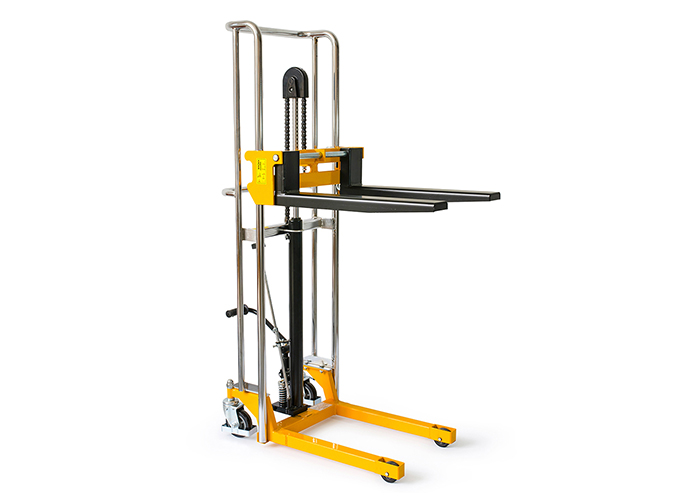

Name:PJ+LP Mini Stacker with Removable Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PJ+LP Mini Stacker

Light-duty design with easy and safe operation.

High-quality oil cylinder with long service life.

Chromium plated frame can be beautiful and durable.

Widely used with low leg and various accessories as option.

Specifications:

Model   PJ4085LP PJ4120LP PJ4150LP PS4180LP
Load Capacity kg 400 400 400 400
Load Centre mm 350 350 350 350
Fork Max./Min.Height mm 85/850 85/1200 85/1500 85/1800
Fork Length mm 650 650 650 650
LP Platform mm 660x580 660x580 660x580 660x580
Fork Width mm 235-500 235-500 235-500 235-500
Front Wheel(PU轮) mm Ф125×40 Ф125×40 Ф125×40 Ф125×40
Rear Wheel(PU轮) mm Ф75×30 Ф75×30 Ф75×30 Ф75×30
Total Length mm 1040 1040 1040 1040
Total Width mm 590 590 590 590
Total Height mm 1060 1410 1710 1710
Min.Turning Radius mm 930 930 930 930
Net Weight kg 75 81 85 85
Option Platform   chromed LP10(660x580) or stainless LP20(660×580)

Previous:TFL Container Hydraulic StackerNext:LS80 LS150 Manual Winch stackerReturn
